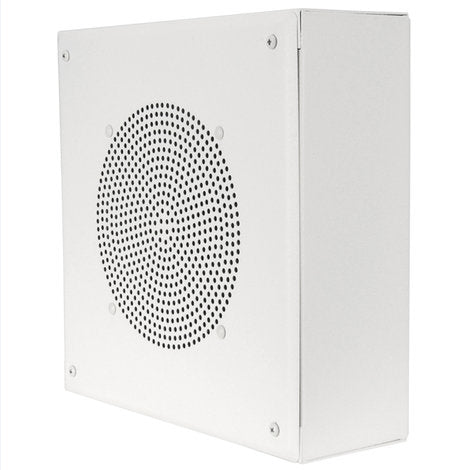

Quam SYSTEM-1-QUAM - 8" Square Surface Wall-Mount Speaker, 25V/70V, White Powder Finish

The SYSTEM 1 is a complete loudspeaker system consisting of an 8C5PAX – 8Ω O.D. dual-cone loudspeaker with a 5oz. magnet and a TBLU - 5W 25 / 70V transformer mounted on a BS8W - square, screw mount, steel baffle with a SE1WVP - square, steel, vandal resistant, surface mount enclosure with four (4) 8-32 threaded inserts and a single 1/2"conduit entrance. White powder coat finish.

• Complete wall-mount 8" loudspeaker assembly
• All-steel construction
• Durable white baked epoxy finish
• Simple installation
• 5W power handling

Specifications

• Speaker: 8C5PAX
• Type: 8” P.C.
• Freq. Response: 65Hz - 17kHz
• Power Rating: 8 Watts
• Sensitivity: 98dB SPL (1w / 1m)
• Magnet Size: 4.8oz.
• Voice Coil: 8Ω
• Cone Type: Treated Paper
• Transformer: TBLU
• Power Rating: 5 Watts
• Primary Volt: 25 / 70
• Primary Taps: 5 / 16, 5 / 8, 1-1/4, 2-1/2, 5 Watts
• Terminations: (9) 6” leads, color coded
• Grill: BS8W
• Finish: Baked White Powder Epoxy
• Material: 22-gauge Steel
• Enclosure: SE1WVP
• Material: .060” Cold Rolled Steel
• Finish: Baked White Powder Epoxy
• Mounting Holes: 10” square
• Face: Flat
• Weight: 9lbs.
