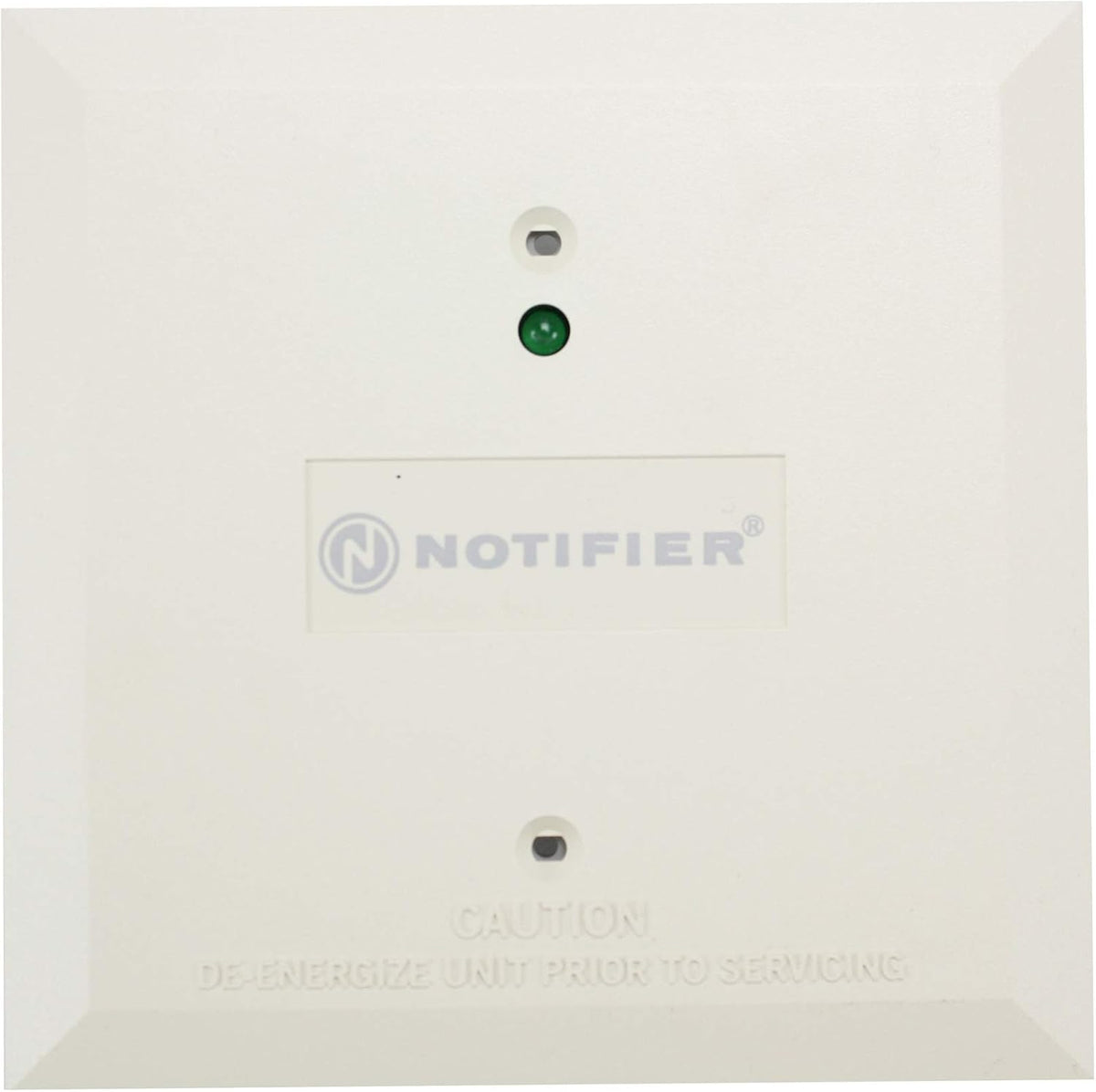

Notifier FRM-1 Fire Alarm Intelligent Addressable Relay Module

The Notifier FRM-1 is an intelligent addressable relay module that provides a dry-contact output for activating auxiliary devices such as fans, dampers, control equipment, and door holders. It uses two Form C dry contacts that switch together and can be activated manually or through panel programming on a select basis.

Key Specifications:

• Type:  Intelligent addressable relay module
• Core Function(s): Provides a dry-contact output for auxiliary control applications such as fans, dampers, door holders, and control equipment
• Loop/Protocol: Notifier SLC; Flash Scan 01-159 and CLIP 01-99 addressing via rotary switches
• Power: 15 to 32 VDC; 6.5 mA max (LED on); 230 uA direct poll; 255 uA group poll
• Relay Output: Two Form C dry contacts that switch together
• Indicators/UI: Integral LED blinks green when polled by the control panel and turns steady red when activated; LED blink may be globally deselected
• Mounting: Mounts to a 4-inch square, 2.125-inch-deep box
• Wiring: SEMS screws with clamping plates
• Works with Notifier intelligent fire alarm control panels that support Flash Scan or CLIP protocol operation on the SLC loop.
