Heusinkveld Sprint Baseplate
- Condition: New, Open Box
Heusinkveld Sprint Baseplate is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Heusinkveld Sprint Baseplate
Engineering
With the brake of the Sprint pedals being able to cope with high forces (up to 65kg), a sturdy mount to your simulator rig is an absolute must. Standard pedal mounting plates of rigs often show excessive flex under these loads. This baseplate helps to create a solid platform to mount the pedals on your rig. The slotted mounting grooves allow for easy adjustment of individual pedal positions.

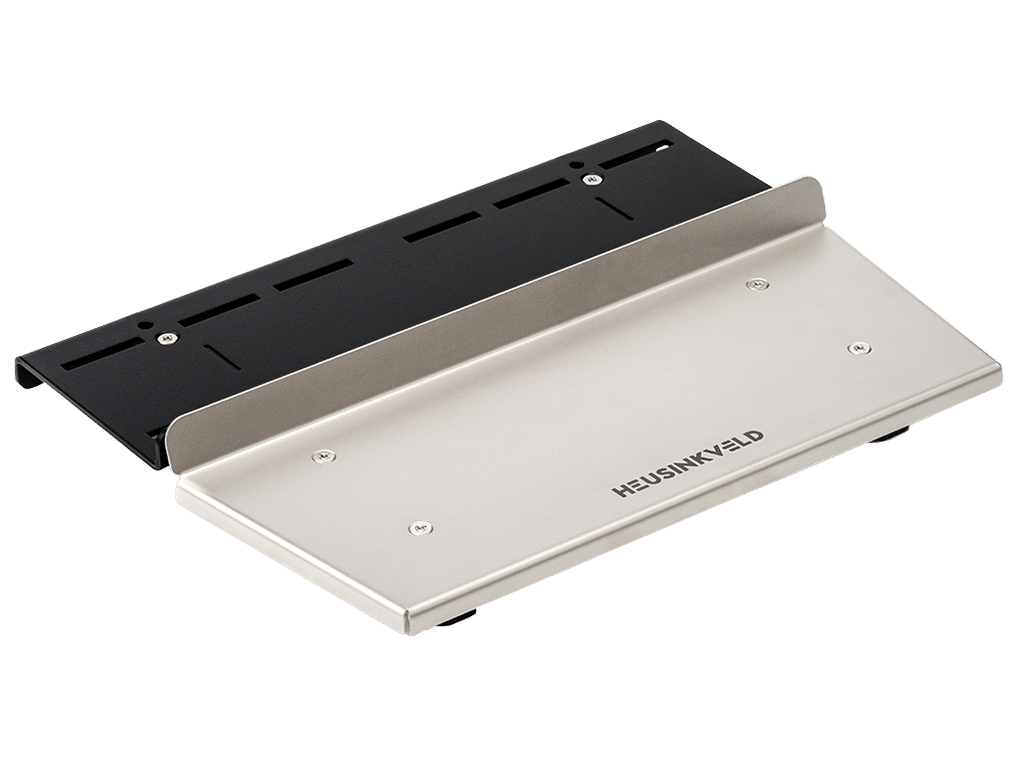

The baseplate assembly consists of multiple elements: A pedal plate on which you mount the pedals, a height adjustable heel plate as well as two brackets which are used to secure the baseplate to an underlying frame.
Adjustment options
The baseplate mounting points for the pedals are slots which allow for lateral adjustment of individual pedals. The lateral slots are 29mm for the brake pedal and 24mm for the throttle and clutch pedal. Every single pedal can also be adjusted 12,5mm backwards and forwards through the slots in the pedal feet themselves.
The included t-nuts allow for convenient fine-tuning of the pedal position by slightly loosening the pedal mounting bolts from the top of the pedal plate, now you are able to change the position without having to remove the whole pedal.
By default the heel plate is 0mm elevation, using the supplied spacers (30mm) you raise the heelplate to a higher position. This height adjustment helps you to achieve optimal pedal ergonomics in your simulator.
Mounting
The mounting holes on the brackets are compatible with TM T3PA and T3PA Pro (235mm) pedal sets. Six mounting points on the brackets are provided in total, giving plenty of options mount the baseplate to aluminium profiles or create your own drilling template to install the baseplate to your rig.
Please note that this baseplate does not allow you to install the pedals on a floor without further support, or in a wheel stand where there is no solid connection between the pedals and the seat. A full frame rig/simulator is always required.
Compatability
Heusinkveld Sprint Baseplate is only compatible with Heusinkveld Sprint pedals (2-pedal set and 3-pedal set) and our Rest Pedal (in combination with a 2-pedal set).
