Monoprice Blackbird 4K HDBaseT Extender Kit, 120m, HDR, 18Gbps, 4K@60Hz, YCbCr 4:4:4, HDCP 2.2, PoC, RS-232, Loop Out and Bidirectional IR Product # 41097
- Condition: New, Open Box
Monoprice Blackbird 4K HDBaseT Extender Kit, 120m, HDR, 18Gbps, 4K@60Hz, YCbCr 4:4:4, HDCP 2.2, PoC, RS-232, Loop Out and Bidirectional IR Product # 41097 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
NEW

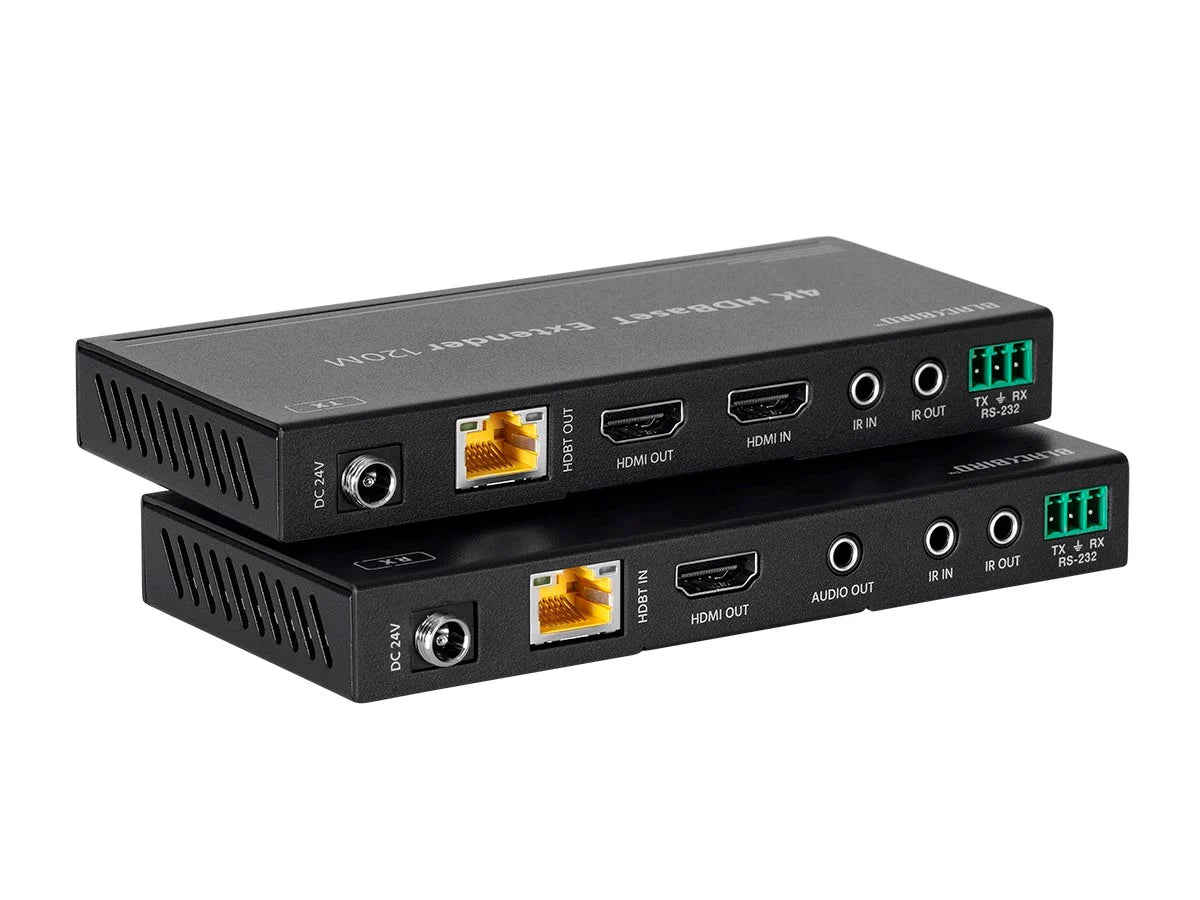

This Blackbird™ 4K HDBaseT™ Extender Kit allows you to extend 4K@60Hz HDMI® video signals to distances up to 394 feet (120 meters) over a single Cat6 Ethernet cable. It complies with the HDMI 2.0 and HDCP™ 2.2 specifications and supports up to 18Gbps bandwidth. It supports the Power over Cable (PoC) feature, allowing either the transmitter or receiver to receive its power from the other device over the connecting Ethernet cable.
The transmitter includes an HDMI loop output for connecting a local display and the receiver includes an analog audio output for connecting an external amplifier or powered speakers for amplification of audio de‑embedded from the HDMI signal. It supports bidirectional IR and RS‑232 pass‑through and includes two IR transmitters, two IR receivers, and 2 Euroblock connectors for the RS‑232 connections.
| Model | 41097 |
| Maximum Video Resolution | 4K@60Hz YCbCr 4:4:4, including 4K@30Hz YCbCr 4:4:4, 1080p@60Hz, all HDMI® 3D formats, and PC video up to 1920x1200 |
| Supported Color Spaces | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDMI Version | 2.0 |
| HDCP™ Version | 2.2 and 1.4 |
| Video Bandwidth | 18Gbps |
| Color Depth | 8/10/12‑bit: 1080p@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0 8‑bit: 4K@60Hz YCbCr 4:4:4 |
| Transmission Method | HDBaseT™ |
| Maximum Transmission Distances | 4K@60Hz: 394 feet (120 meters) 1080p@60Hz: 492 feet (150 meters) |
| Maximum HDMI® Cable Length | 4K@60Hz: 10 feet (3 meters) 4K@30Hz: 32 feet (10 meters) 1080p@60Hz: 49 feet (15 meters) |
| Input Power | 24 VDC, 1A |
| AC Adapter Input Power | 100 ~ 240 VAC, 50/60 Hz |
| Maximum Power Consumption | 9.36 watts |
| Operating Temperature | +32 ~ +104°F (0 ~ +40°C) |
| Storage Temperature | ‑4 ~ +140°F (‑20 ~ +60°C) |
| Operating Humidity | 20 ~ 90% RH, noncondensing |
| Dimensions (each) | 5.5" x 2.6" x 0.7" (140 x 65 x 18 mm) |
| Transmitter Weight | 5.6 oz. (160g) |
| Receiver Weight | 5.5 oz. (155g) |
